VERTICAL MIXER WITH 2 SCREWS WITH BEDDER INTEGRATED AEROMEL

STANDARD EQUIPMENT

Mixing – Dispensing

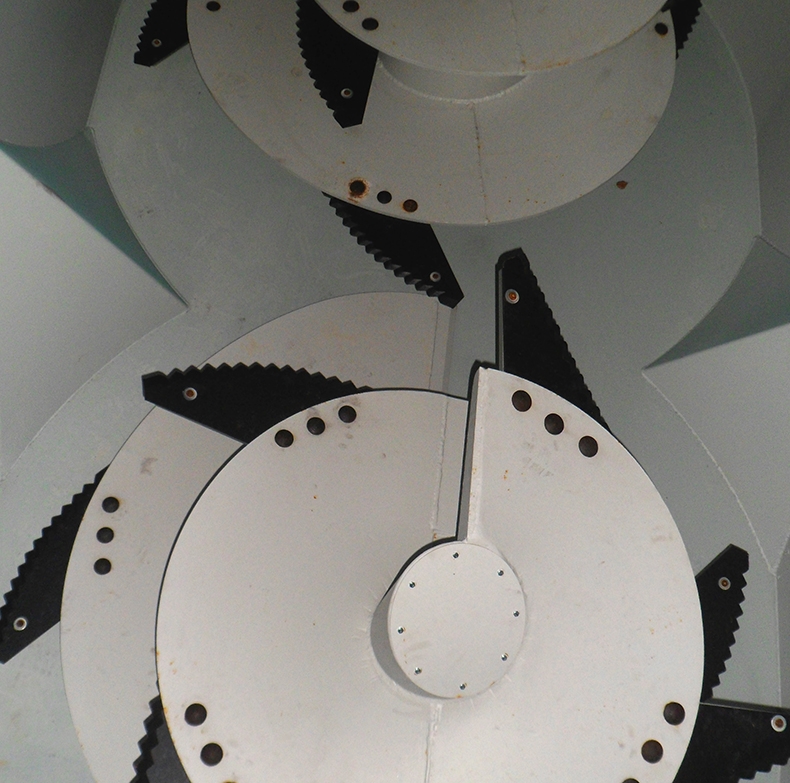

Vertical conic mixing screw equipped with 7 blades and 1 adjustable scraper
Conic circle with an anti-flood integrated in the vat
Fiber circle

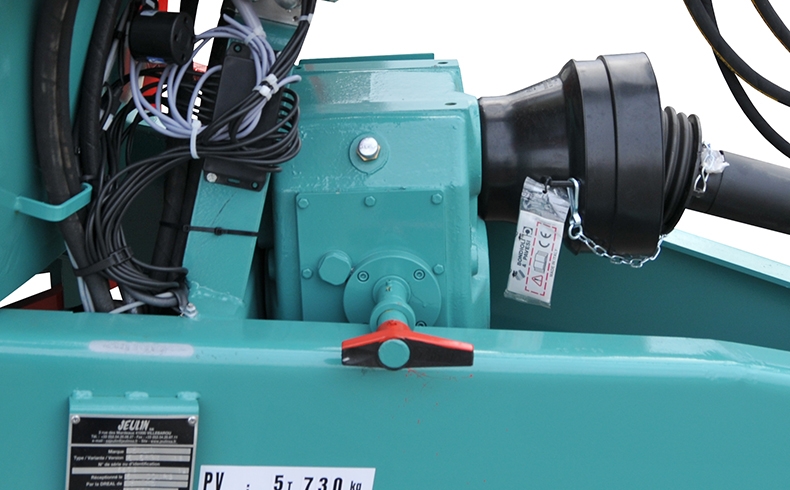

2 Gears gearbox 16/32 rpm (manual driving) mixing screw

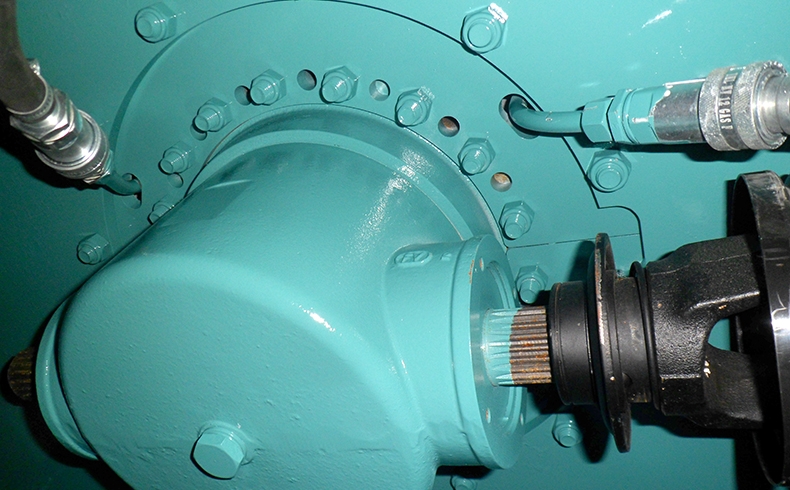

Angle reverser reducer with oil bath (tank 4l)
2 manual vertical contra-rotating blades
Tangantial unloading trap door front right or rear left
Control ladder

Bedding
Front bedder with a big blower 1600 mm
Blower composed of 8 removable paddles
Blower housing 320 mm width in anti-abrasive steel (Brinel 430 hb steel 120 kg)
Blower trap door
Bedding trap door opening by 2 outside cylinders
Mechanical driving with free wheel and safety frictions
Bedding and feeding hute lateral right hand side activated by 1 cylinder
Contra-rotating blades in the chute
2 gears gearbox with manual control (dispensing 270 rpm – bedding 540 rpm)

Conception – Safety
Chassis integrated to the vat (narrow and low model)
Weighing DG500, 4 points on independant chassis, 24 programs,18 components with horn
Safety casing

Control
Electric control 3 functions with a mobile box in the tractor cab

Road traffic
Parking brake and hydrailic brake
Lighting in accordance to the Highway code
Manual kickstand
Linkage on piton
Revolving light
CE norms and DREAL reception

Transmission
PTO transmission serie 8 with protection and safety bowl machine side

Tractor equipment
1 plug 540 rpm and 1000 rpm
1 electric plug 12v/3 pins for weighing
1 electric plug 12v/7 pins for light
1 hydraulic distributor SE with direct return to the tank
1 linkage piton

ADDITIONAL EQUIPMENT :

Dispensing
– Lateral PVC conveyor 0,80 m, width 1,10 m hydraulic inclination right side (2 DE)
– Rear bilateral unloading conveyor chains and bars 0,80 m – cancels the front trap
– Inclined conveyor 0,80 m width for feed from 0,60m to 1,10 m with hydraulic dish inclined side 0,30 m (L or R inclination to precise) (1DE)
– Hydraulic dish of the conveyor 0,30 m R or L  or  0,20 dish R or L (1 add function)
– Stainless steel rear conveyor 0,80 m width
– Bilateral PVC conveyor flat only 0,80 m width replacing chains and bars
– Central rear bilateral unloading conveyor 2,00 m, width 1.10 m, hydraulic lifting by 2 dispensing cylinders H. 2,50 m
– Rear banana conveyor, chains and bars width 0,80 m (dispensing R or L, hydraulic dish 0,20 m height max 1m) – cancels the front trap door (2 add functions)
– 2nd rear left trap door or elsewhere (1 DE)
– Footbridge to replace the ladder
– Cone for minerals loading (rear)
– Build-up vat for 2 screws machine (increases the height of 0,30 m +3m3)

Bedding
– Lateral feeding and bedding chute orientation front and rear 30+ (1 add function)
– Feeding and bedding mono-chute R and L (1 add function)
– Hydraulic cylinder on the chute cap  (1 add function)
– Hydraulic adjustment of the dispensing slide

Hydraulic – Electric
– Electric speed shifting on mixer (1 add. Function)
– Electric speed shifting on bedder (1 add. Function)
– Additional function for electric distributor
– Double electric control near the conveyor (3 functions)
– Electric flow regulator in tractor’s cab for unloading conveyor (1 sens)
– Manual flow regulator for unloading conveyor (1 sens)
– Hydraulic kickstand with manual pump
– MOTEC camera with screen
– Additional MOTEC camera

Cutting system
– 1 additional manual vertical contra-rotating blade
– 2 hydraulic vertical contra-rotating blade to replace the 2 manual ones (1DE)
– 1 additional manual horizontal contra-rotating blade
– 1 additional hydraulic horizontal contra-rotating blade (1 DE)
– 2 hydraulic contra-rotating blades for tubercules and roots (1 DE)
– Extension of knives for long straw

Transmission
– Wide angle PTO transmission serie 8  tractor side with protection – Any PTO used will not be taken back neither exchanged

Pneumatics
– Spare wheel 435/50 x 19,5

DIMENSIONS :
