MOUNTED SILAGE-FEEDER STRAW BLOWER BREVA

STANDARD EQUIPMENT

Silo-unloading
Rounded silo-unloading rake
2 cylinders on the arms
2 cylinders on the silo-unloading rake

Shredding – Dispensing – Mulching
Shredding by blower and cone
Blower housing in anti abrasive steel (Brinel 430 hb  120 kg steel)
Superior protection deflector with hydraulic control in front of the blower
Greabox 2 gears (unloading 270 trs/mn – bedding 540 trs/mn) with free wheel
Lateral bedding chute on the right hand side activated by 1 cylinder
Contra-rotating blade in chute
Bedding from 0 to 18 m with round bale only (attention Ø 1,50 m maxi)

Floor conveyor
Conveyor Marine chain Ø 10, bars in removable rectangular tubes with manufactured ends ®
Driving of the floor conveyor by moto reductor oil bath, front and rear side with adjustable speed
Indicator on the floor conveyor rotation’s way

Conception – Safety
Removable bottom
Dual floor with spring trap door for easy cleaning
Bolted housing

Control
Electric control of all the functions with a mobile control box in the tractor’s cab

Road traffic
Linkage on hitch
Linkage on raising with provided bar category 3

Transmission
PTO transmission with protection and safety bowl machine side

Tractor equipment
PTO shaft for 540 rpm
1 electric plug 12v/3 pins for electrical distributor
1 hydraulic distributor 1 SE with direct return to the tank
25l/mn minimum flow
Linkage category 3

ADDITIONAL EQUIPMENT :

Chutes and equipment
– Bedding chute orientation 300° – Bedding 15 m maxi (cancels the lateral chute at the right hand side) Bedding use only
– Lateral bedding and feeding chute orientation front and rear 30°
– Hydraulic cylinder on the chute cap

Dispensing
– Section set on the blower (17)

Hydraulic
– Hydraulic oil filter

Others
– Watertightness plate on the shovel
– Speed shifting with electric control on the blower box
– Rear articuled light in accordance with the Highway code
– Linkage bar category 2

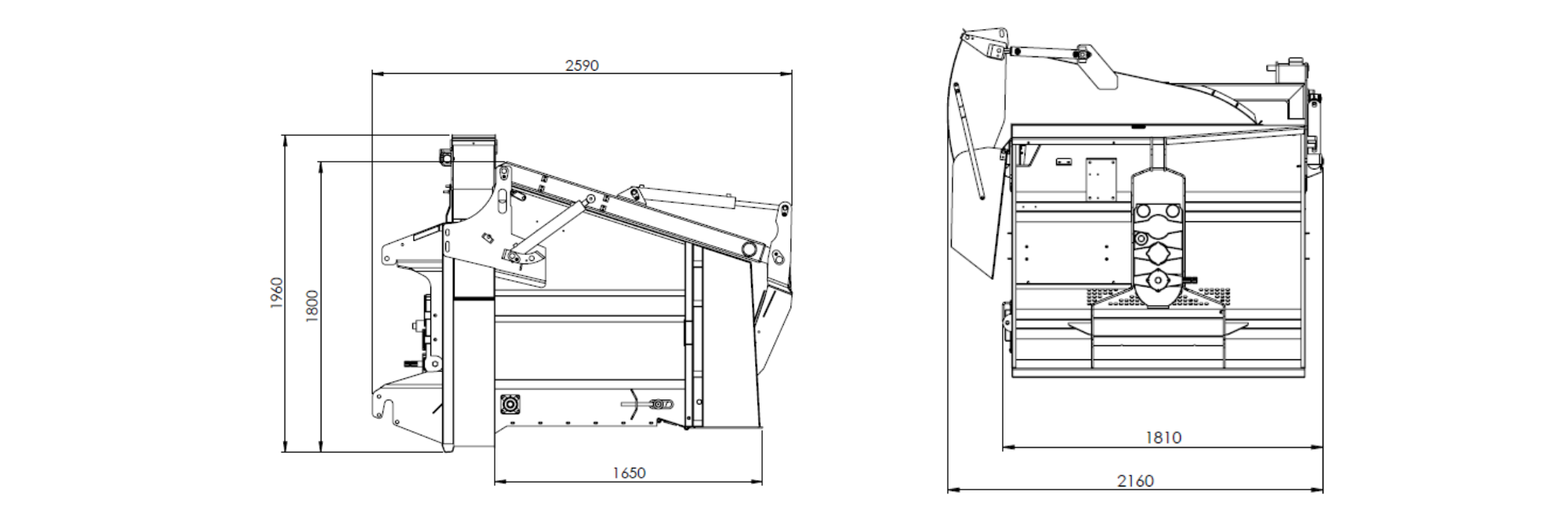

DIMENSIONS :
