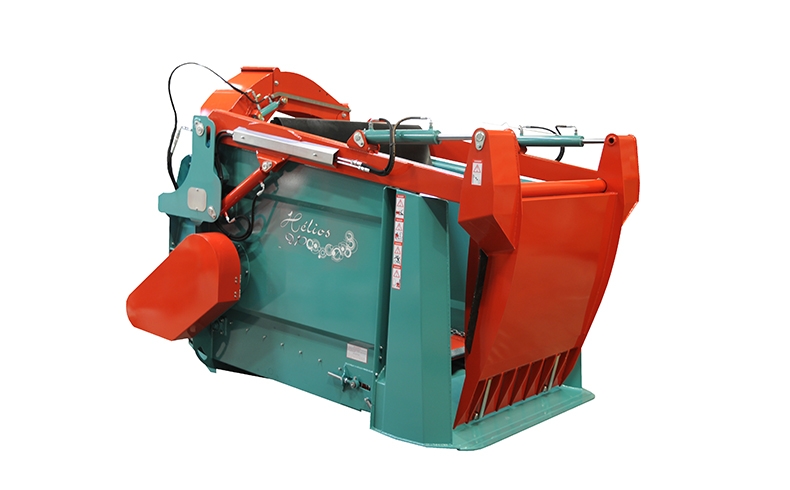

SILAGE-FEEDER STRAW BEDDER – MOUNTED OR TRAILED HELIOS DP

STANDARD EQUIPMENT

Silo-unloading
Rounded silo-unloading rake
2 cylinders on the arms
2 cylinders on the silo-unloading rake
Indicator of the shovel position
Watertightness plate on the shovel teeth

Shredding – Dispensing – Mulching
1 shredder rotor mechanically driven by durable belt and automatic tightening equipped with 15 big blades predisposed to wrapped  silage
Chamber with 2 retainers
Turbine Ø 1600 mm composed of 8 removable paddles
Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel)
Visit trap door (blower)
2 speed gearbox (feeding 270 rpm  – bedding 540 rpm) with free wheel
Dispensing and bedding mono-chute activated by 1 cylinder with manual dispensing slide or lateral bedding and feeding chute at the right hand side activated by 1 cylinder
Dispense up to 18 m on the right hand side with round bale Ø 1,70 m

Floor conveyor
High strength Marine chain Ø 10, bars in removable rectangular tubes with manufactured ends ®
Driving on the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed
Indicator on the floor conveyor rotation’s way

Conception – Safety
Monobloc body
Dual floor with spring trap door for easy cleaning
Bolted housing on hinges
Rubber against dust

Control
Electric control of all the functions with a mobile control box in the tractor’s cab

Road traffic – mounted model
Linkage bar categorie 3

Road traffic – trailed model
Drawbar with linkage bar provided category 2
Hydraulic axle pivot activated by 2 cylinders
Parking brake and hydraulic brake
Light in accordance with the Highway code
Manual kickstand with holds
CE norms and DREAL homologation

Transmission
PTO transmission with protection, safety bowl machine side

Tractor equipment
1 PTO for 540 rpm
Electric plug 12v/3 pin for the electric distributor
Electric plug 12v/7 pin for the light (trailed machine)
Hydraulic distributor 1 SE with direct return to the tank
Minimum of flow 25L/mn

ADDITIONAL EQUIPMENT :

Chutes and equipment
– Hydraulic kit to adapt the rotation of the chute at 300°
– Mulching and dispensing chute orientation front and rear 30° on the right side (l. 2,55 m)
– Hydraulic cylinder on the chute cap

Mechanical driving
– Multi-discs clutch with oil bath for mechanical driving of the rotor

Wrapped silage dispensing
– Kit to dispense wrapped bales (+15 sections and +3 retainers)
– Section set on the rotor (15)

Hydraulic
– Hydraulic driving of the shredding rotor
– Hydraulic adjustament comb 5 teeth

Others
– Silage footbridge with double electric control 4 functions (arm, shovel, conveyor, axle) on trailed model
– Speed shipting with electric control on the blower box
– Rear articuled light in accordance to the Highway code (mounted model)
– Long beam with manual kickstand without linkage bar (piton linkage)
– Atomizer (trailed model only)
– Spare wheel 10/75 x 15,3
– Wide angle PTO transmission machine side with protection (trailed model only) – any PTO used will not be taken back neither exchanged
– Trailed kit after delivery

DIMENSIONS :
