Hélios DP

Silage unloaders and silage straw blowers |

The Hélios DP is a silage cutter, straw blower and feed distributor designed to meet the needs of livestock farmers looking for a versatile machine. Capable of handling silage cutting, feed loosening, feed distribution and straw bedding, it is suitable for a wide variety of forages and livestock housing systems. Its carefully engineered design, combined with high-quality components and simple controls, ensures efficient operation, excellent operator comfort and outstanding day-to-day reliability.

Download the brochure

Are you interested in this model?

Contact ou sales representatives

In France

Contact ou sales representatives

Internationally

Technical specifications

746

Silage Loading

  • Rounded silage grapple

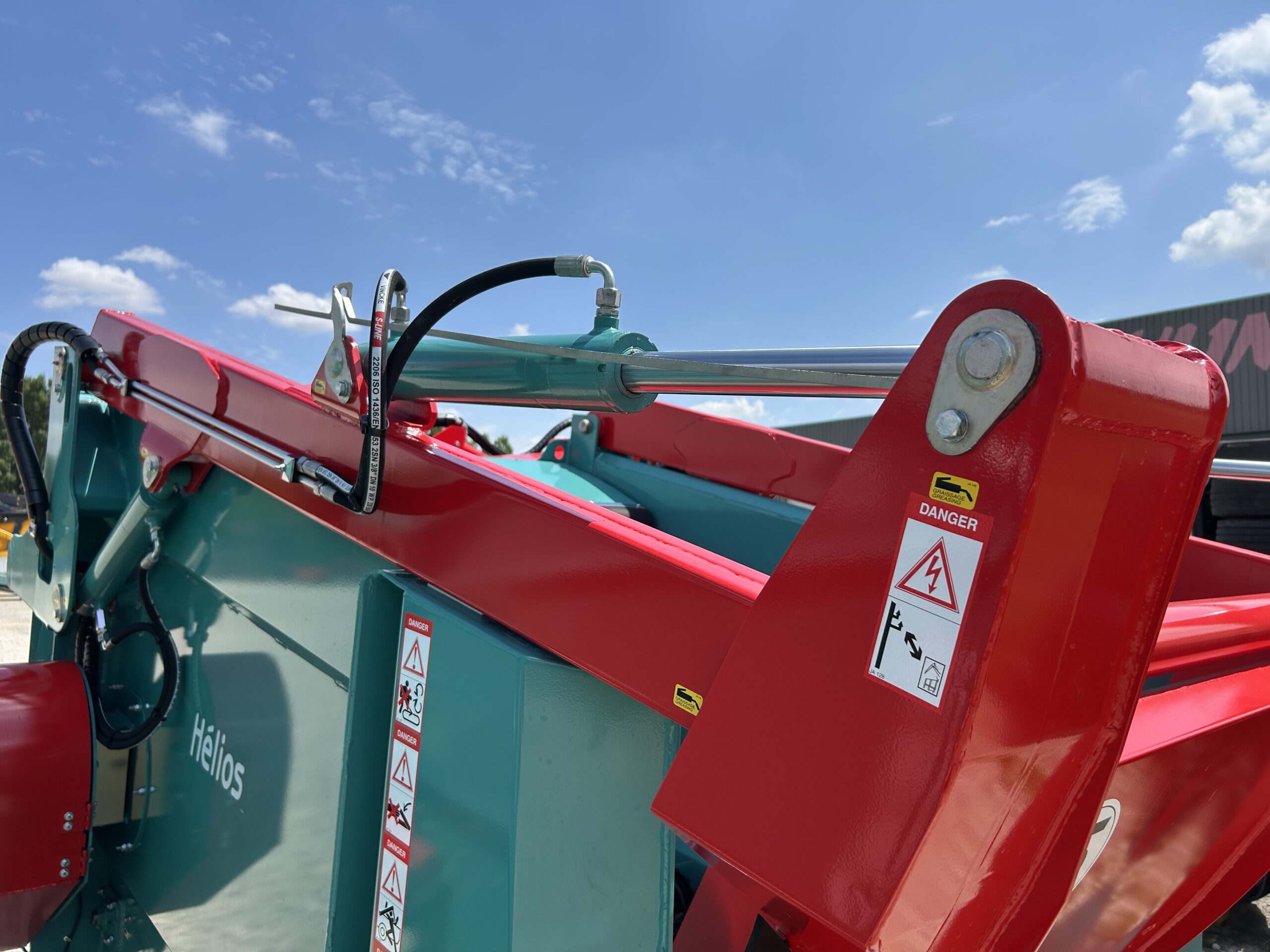

  • 2 hydraulic cylinders on the lifting arms
  • 2 hydraulic cylinders on the grapple
  • Grapple position indicator
  • Sealing plate on the grapple tines

Loosening – Distribution – Bedding

  • 1 mechanically driven loosening rotor with multi-rib belt drive and automatic belt tensioner, fitted with 15 large blades, suitable for wrapped bales
  • Two-retainer chamber
  • Ø 1,600 mm turbine fitted with 8 removable blades
  • 320 mm wide turbine housing made of abrasion-resistant steel (Brinell hardness 430 HB, 120 kg steel)
  • Turbine inspection hatch
  • Two-speed gearbox: 270 rpm for feed distribution – 540 rpm for bedding, with integrated overrunning clutch
  • Single distribution/bedding chute operated by one hydraulic cylinder with manual distribution slide, or right-hand side distribution/bedding chute operated by one hydraulic cylinder
  • Bedding distance from 0 to 18 m on the right-hand side with round bales up to Ø 1.70 m

Moving Floor

  • Heavy-duty Ø 10 mm marine-grade chain conveyor with removable rectangular slats featuring machined ends®
  • Oil-bath hydraulic gear motor drive with forward and reverse operation and electric speed control
  • Conveyor rotation direction indicator

Design – Safety

  • One-piece body
  • Double sealed floor with rear cleaning hatch
  • Bolted protective guards
  • Anti-projection rubber flap

Controls

  • Electric control valve operating all functions via a mobile in-cab control box

Transport – Mounted Version

  • Category III hitch bar supplied

Transport – Semi-Mounted Version

  • Drawbar with Category II hitch bar supplied
  • Hydraulically operated steering axle with two hydraulic cylinders
  • Parking brake and hydraulic service brake
  • Articulated rear lighting compliant with road traffic regulations
  • Parking stand with adjustment holes
  • CE compliant and DREAL approved

Driveline

  • PTO driveline with friction clutch safety protection and PTO guard on the machine side

Tractor Requirements

  • 540 rpm PTO
  • 12 V / 3-pin electrical socket for the electric control valve
  • 12 V / 7-pin electrical socket for road lighting (semi-mounted version)
  • 1 single-acting hydraulic spool valve with direct return to the tank
  • Minimum hydraulic flow: 25 L/min

Chutes and Equipment

  • 300° hydraulic swivel single chute kit
  • Distribution/bedding chute with 30° forward and rearward pivot on the right-hand side chute (overall width: 2.55 m)
  • Hydraulic cylinder for the chute deflector (side chute or single chute)

Mechanical Drive

  • Oil-bath multi-disc clutch for the mechanical drive of the loosening rotor

Wrapped Bale Distribution

  • Wrapped silage bale distribution kit (+15 blades and +3 retainers)
  • Set of 15 rotor blades

Hydraulics

  • Hydraulic drive for the loosening rotor
  • 5-tooth hydraulic regulating comb

Miscellaneous

  • Silage loading platform with dual 4-function electric controls (lifting arms, grapple, moving floor and axle) for the semi-mounted version
  • Electric gearbox shift control on the turbine control box
  • Articulated rear lighting compliant with road traffic regulations (mounted version)
  • Long drawbar with manual parking stand, without hitch bar (clevis hitch)
  • Misting system (semi-mounted version only)
  • 10/75 × 15.3 spare wheel
  • Half wide-angle PTO shaft with guard on the tractor side (semi-mounted version only)
  • Any PTO shaft that has been used cannot be returned or exchanged
  • Semi-mounted conversion kit (after delivery)
