SILAGE-FEEDER BEDDER DISPENSER – MIXER Sirius DP 55 – Sirius DP 70 – Sirius DP 80

STANDARD EQUIPMENT

Silo-unloading
Rounded silo-unloading rake
Watertightness plate on the shovel teeth rectractable by springs
2 cylinders on the arms caught in screed
2 cylinders on the silo-unloading rake caught in screed
2 cylinders on the increase axle caught in screed
Indicator of the shovel position

Shredding – Dispensing – Mulching
1 shredder rotor mechanically driven by durable belt and automatic tightening equipped with 15 big blades predisposed to wrapped  silage
Chamber with 2 retainers
Turbine Ø 1600 mm composed of 8 removable paddles
Blower housing width 320 mm in anti abrasive steel (Brinel 430 hb 120 kg steel) partly removable
Visit trap door (blower)
2 speed gearbox (feeding 270 rpm  – bedding 540 rpm) with free wheel
Lateral chute on the right hand side for bedding and feeding activated by 1 cylinder
Dispense up to 18 m on the right hand side with round or square bale

Floor conveyor
Floor conveyor Marine chain Ø 12, bars in removable rectangular tubes with manufactured ends ®
Driving on the floor conveyor by moto reductor oil bath, front and rear side with electric adjustable speed
Indicator on the floor conveyor rotation’s way

Conception – Safety
Removable bottom and sides
Flat bottom of the body
Dual floor with spring trap door for easy cleaning
Bolted housing on hinges
Smooth internal sides
Rubber against dust

Control

Electric control of all the functions with a mobile control box in the tractor’s cab

Transmission
Electric control of all the functions with a mobile control box in the tractor’s cab

Road traffic
Linkage on raising with provided bar category 2
Parking brake and hydraulic brake
Light in accordance with the Highway code
CE norms and DREAL homologation

Tractor equipment
1 PTO for 540 rpm
Electric plug 12v/3 pin for the electric distributor
Electric plug 12v/7 pin for the light
Hydraulic distributor 1 SE with direct return
Minimum of flow 30L/mn

ADDITIONAL EQUIPMENT :

Chutes and equipment

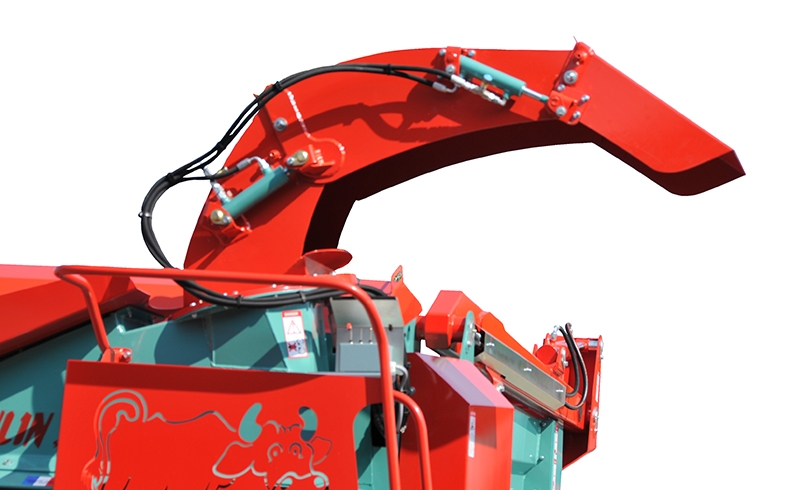

– Hydraulic kit for mono-chute orientation 300°
– Bedding and feeding chute orientation front and rer 30° on the right side chute (l. 2,55 m)
– Hydraulic cylinder on the chute cap
– Build-up mono-chute + 25 cm (compulsory of mixer)
– Mixing net
– Mixing kit including mixing net, mono-chute 300°, build-up chute, cylinder on chute cap, 2 shedding rotors – Unchangeable kit
– Hydraulic adjustment of the dispensing slide

Footbridge
– Silage footbridge with dual electric control 4 functions (arm, shovel, conveyor, axle)

Mechanical driving
– 2nd shredding rotor with mechanical driving and fixed regulator comb
– Multi-disc clutch with oil bath for mechanical driving of the rotor

Hydraulic
– Hydraulic driving of the shredding rotor(s) with fixed regulator comb
– 2nd shredding rotor with hydraulic motor (provide the group for tractor with lower flow than 30l/mn)
– 2nd speed shredding rotor with hydraulic driving (on machine equipped with 2 rotors)
– 1 motor on the rotor +25% power
– 2 motors on the rotors +25% power
– Hydraulic oil filter

Weighing
– Weighing DG500, 3 sensors, 24 programs, 18 components with horn (2 sensors on the axle and 1 on the beam)

Others
– Front mixing hopper with fixed beam capacity 500l electric speed shifting
– Speed shifting with electric control on blower box
– Working light
– Long beam with manual kickstand without linkage bar (piton linkage)
– Articuled beam
– Hydraulic articuled beam
– Articuled beam for machine with hopper
– Nitrogen ball on axle (for lots of road)
– Atomizer
– Spare wheel 10/75 x 15,3
– Spare wheel 11,5/80 x 15,3
– Wide angle PTO transmission tractor side with protection – Any PTO used will not be taken back neither exchanged

DIMENSIONS :
