Hera BH

Unrollers | Marque : Jeulin

Across the entire range, chains are protected in their guides by a protective sheet, allowing for clean forage by preventing direct contact with them. Our unrollers are thus highly robust, reinforced by their detachable and replaceable bars.

The HERA BH model is equipped with a high-capacity loading arm facilitating bale loading. All models are standardly adaptable to 3-point hitches and optionally to all types of front-end loaders or telescopic arm loaders.

Download the brochure

Are you interested in this model?

Technical specifications

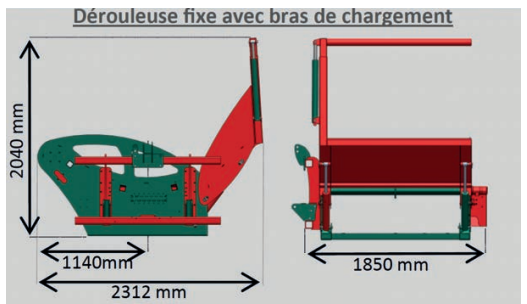

DescriptionHéra BH
Dérouleuse fixe
avec bras de chargement
Côté de distributionDroite
Diamètre botte maxi (m)2
Longueur HT (m)1,85
Largeur (m)2,31
Hauteur (m)2,04
Poids maxi de botte (kg)1 000
Poids à vide (kg)750

UNROLLER – DISTRIBUTOR

  • 17 detachable bar conveyor belt with guide
  • Chain protection plates

DESIGN

  • Hydraulic drive
  • Detachable hitch frame (category 2 three-point hitch)
  • Right-hand distribution

LOADING ARM

  • High-capacity loading arm (2 lifting cylinders)
  • Hydraulic adjustment of the loading arm

HYDRAULIC ROTATION BH 180

  • Hydraulic drive by toothed pinion Swivel ring capable of bearing up to 2.5 T load 180° distribution

TRACTOR EQUIPMENT BH

  • 1 double-acting hydraulic distributor for conveyor belt 1 double-acting hydraulic distributor for loading arm



Hitch

  • Removable hitch hardware for loader and telescopic arm cart

Controls

  • Electric controls, 2-function distributor

Additional electric function

  • Electric flow regulator in cabin for unloading conveyor (1 direction)
  • Manual flow regulator (1 direction – Specify Right or Left when ordering)

Hera BH Mulching

  • Hydraulic folding comb mulching kit, comb width 1540 mm 2 x 12 teeth
  • Mulching and untangling to the right or left
  • Fixed sheet opposite the mulching untangling system (2 DE)



Photo gallery
