RBM 1000
Bale trailer | Marque : Anderson
These self-loading trailers are designed to pick up to 20 round bales of wet or dry hay in a simpler and faster way. Reliable durability and optimal machine maneuverability provide unparalleled efficiency in the field.
Are you interested in this model?
Technical specifications

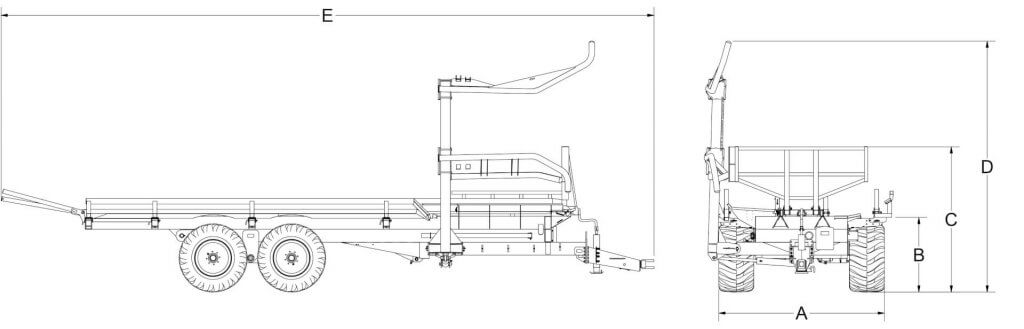

| Dimensions | ||||
| Largeur | 2,55 m | |||
| Largeur totale (incluant bras de chargement) | 2,55 m | |||
| Hauteur | 2,39 m | |||
| Hauteur totale (incluant bras de chargement) | 3,64 m | |||
| Hauteur de la plateforme | 1,44 m | |||
| Distance entre la pince et le centre de la remorque | 2,77 m | |||
| Largeur totale avec bras déployé | 5,54 m | |||
| Hauteur maximale lors du déchargement | 3,73 m | |||
| Poids Total | 5000 kg | |||
| poids à vide sur la barre de tir | 825 kg | |||
| Longueur totale | 9,27 m | |||
| BOTTE | ||||
| Diamètre de la botte ronde | Jusqu’à 1,8 m | |||
| Type de botte | Ensilage, foin sec et paille | |||
| Essieu tandem | Standard | |||
| Essieu tandem freiné | Optionnel | |||
| Essieu tandem suiveur freiné | Optionnel | |||
| CAPACITE | ||||
| Botte ronde de 1,2 m x 1,2 m de diamètre | 10 | |||
| Botte ronde de 1,2 m x 1,5 m de diamètre | 10 | |||
| Botte ronde de 1,2 m x 1,8 m de diamètre | 10 | |||
| Botte ronde de 1,5 m x 1,5 m de diamètre | 8 | |||
| Botte ronde de 1,5 m x 1,8 m de diamètre | 8 | |||
| Capacité de levage du bras de chargement | 1135 kg | |||
| Poids total charge incluse | 19 000 kg | |||
- Standard safety chain
- Round tubular loading arms
- Tires 550/45-22.5
- Minimum hydraulic flow rate of the tractor 38 L/min
- Minimum hydraulic pressure of the tractor 172 bar
- Required horsepower 115 HP
- Three double hydraulic outlets required
- Tractor hydraulic controls
- Pneumatic brake
- Hydraulic brake
- Ring hitch
- Double hitch
- Hydraulic flow control valve
- Bale spacer
- Reverse camera
- Anti-jamming bar
