V-Twin 950

Windrowers | Marque : ELHO

The new ELHO V-Twin 950 Super swather produces clean forage efficiently with a working width up to 9.5 metres!
As harvesters become more powerful, they have the capacity to pick up swaths with more forage. ELHO has developed a new wider trailed swather: the V-Twin 950S with a hydraulically adjustable working width of 4.5–9.5 metres.

The new V-Twin 950S is equipped with HydroBalance suspension to ensure that the machine follows the ground surface smoothly. It also features double rotors that lift the forage and move it in the air it to the centre. This results in top-quality forage. The swath width can be optimised according to the harvester.

The standard V-Twin 950S model can also shift the swather to the right or left side of the tractor. This is useful especially if the space between the swaths is small and you want to avoid driving on the swaths. Another standard feature is the possibility to use only one of the rotors for swathing.

The V-Twin 950 S can be easily prepared for transport. The machine is narrow and relatively low compared to its working width.

Swathing with a harvester reduces the number of kilometres driven, increases the efficiency of harvesting and improves the quality of the forage. ELHO swathers offer forage producers and contractors numerous benefits!

Voir la vidéo

Are you interested in this model?

Technical specifications

DIMENSION
Largeur de travail (m)4,5-9,5
Largeur de l’andain (m)1,3-2,2
Ajustement de la longeur d'andainhydraulique
Déplacement latérale de la flèche d'attelage (m)±1,8
Diamètre du rotor (mm)860
Nombre de dents de râteau476

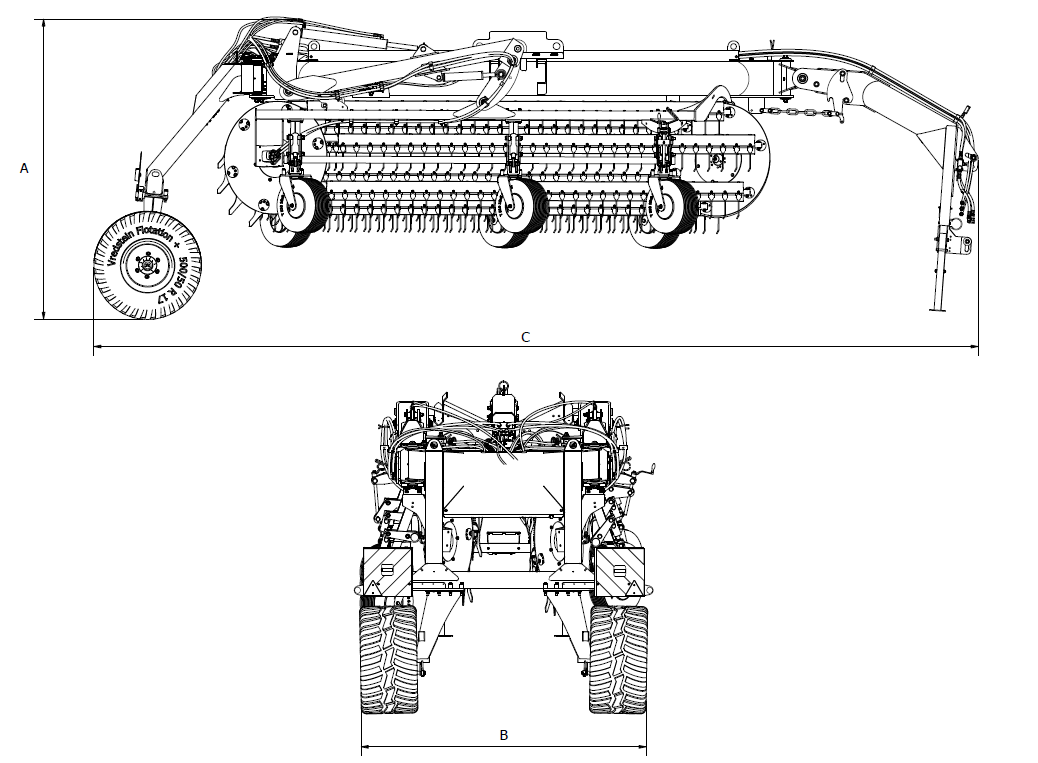

Largeur de transport (m) (B)2,5/2,7/2,9/3,1
Hauteur de transport (m) (A)2.8
Longueur de transport (m) (C)7.9
Taille des pneus500/50-17.5
Poids, kg3500
  • Hydraulic adjustment of swath width Standard
  • Lateral offset at the hitch bar 1.8 m
  • Number of toolbar rows 6
  • 2 Single-action hydraulic couplings
  • 1 Double-action hydraulic coupling
  • 1 Hydraulic connection-free return
  • Number of hydraulic motors 2
  • Required oil flow rate 35 l/min
  • Hydraulic pressure, min/max 175-210 bar
  • 3-point hitch Cat.2
  • ISO/TR 12369 electrical connection 12 V/10 A
  • Hydraulic power unit with drive shaft + adapter piece for rotor drive
  • Double spreader
  • Hydraulic braking
  • 1-function electrical controls
  • Swath splitter
  • Hydraulic unit
  • Wheels 560/45-22.5
