Sideliner 1790 PRO
Wrappers | Marque : ELHO
The ELHO Sideliner 1790 Pro is an automatic wrapper for large diameter round bales!
The versatile ELHO Sideliner 1790 Pro can easily wrap bales in sizes up to 1,8 metres in diameter, as the bale loading capacity is an impressive 1600 kilos. The strong loading arms automatically align the bale to the centre of the wrap table. The satellite wrap arms feature dual 750mm plastic pre-stretchers and film break sensors. The hydraulic control of the tow bar ensures a smooth and convenient handling of the wrapper. Other standard features include a light kit and mudguards that keep the wrapper clean even on long transfer journeys.
To make collecting the wrapped bales easier, the Sideliner 1790 Pro can be equipped with a bale turning ramp and a drop mat.
Are you interested in this model?
Technical specifications
| DIMENSION | |
|---|---|
| Diamètre de balle recommandé, m | 1-1,8 |
| Largeur de balle recommandée, m | 1.2 |
| Poids maximal de la balle, kg | 1600 |
| Taille des pneus | 380/55-17 |
| Kit d’éclairage | X |
| Poids, kg | 1480 |

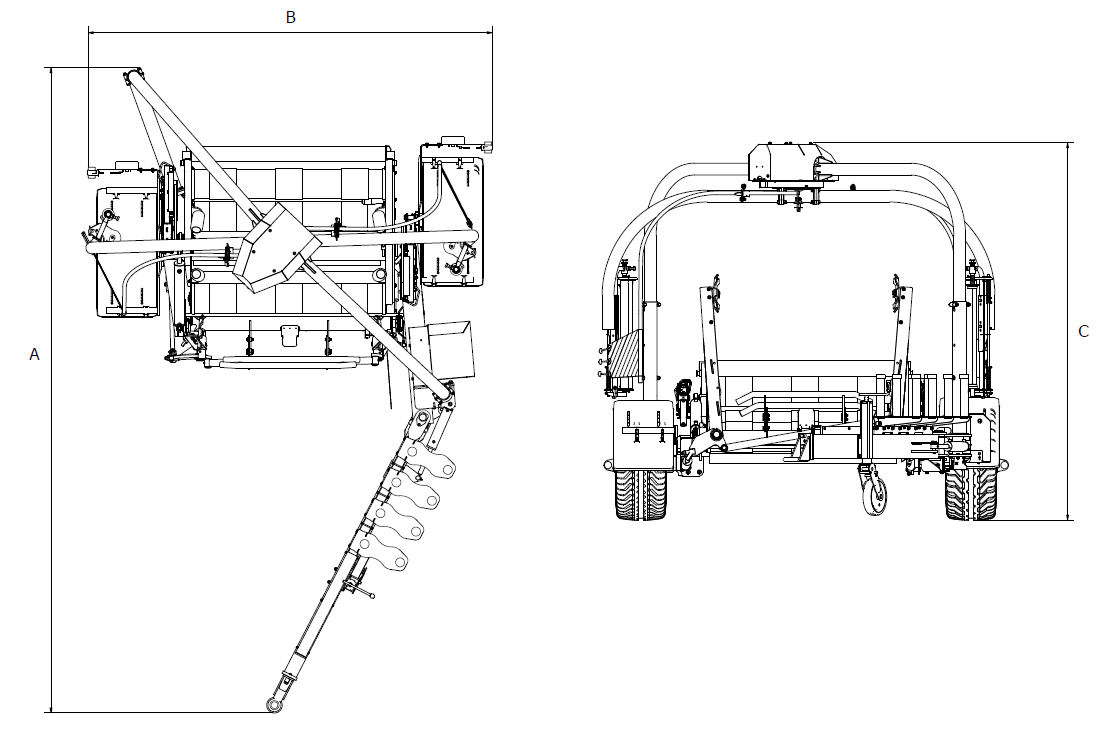

| Longueur, m (A) | 4.5 |
| Largeur, m (B) | 2.85 |
| Hauteur, m (C) | 2,8-3,05 |
- Double upper frame
- Danfoss hydraulic valve with proportionality and Load Sensing connection
- Wrapping speed: +100 bales/hour
- 2 loading cylinders
- 3 rollers driving the wrapping table
- 8 reserve supports for standard rolls
- Automatic passage Road Mode – Working Mode
- Motion sensor for safe operation
- Standard rotator, unloading the bale on the left side
- Road compliant lighting as standard
- Low center of gravity and low drop height
- Also suitable for small tractors
- Reliable rotation of the 2 wrapping arms
- STANDARD FILM PRE-STRETCHER: 2 X 750 mm
- FILM BREAK SENSOR: Standard
- SINGLE-ACTING DISTRIBUTORS: 1
- FREE RETURN ON DISTRIBUTOR: 1
- HYDRAULIC DRAWBAR: Standard
- MINIMUM HYDRAULIC PRESSURE: 180 bars
- TIRES: 380/550-17
- Maximum wrapping speed, rpm: 45
- Max/min hydraulic flow rate: 50/20 l/min
- ISO/TR 12372 electrical connection: 12 V/10 A
- Hydraulic connection-free return: 1
- LS hydraulic kit
- Additional side support rollers
- Drop mat
- Bogie axle (4x26x12.00-12)
