Energy 3P

    Vertical mixers | Marque : Jeulin

    The latest addition to the range, this machine is ideal for medium-sized farms. Narrow and low, it has an independent chassis and low power requirements. Its screws intersect, thanks to the J-FLOW system, which ensures a total emptying of the tank and a homogeneous mixing, even when working with small quantities of products.

    Download the brochure

    Are you interested in this model?

    Contact ou sales representatives

    In France

    Contact ou sales representatives

    Internationally

    Technical specifications

    ENERGY 3P 12 ENERGY 3P 14

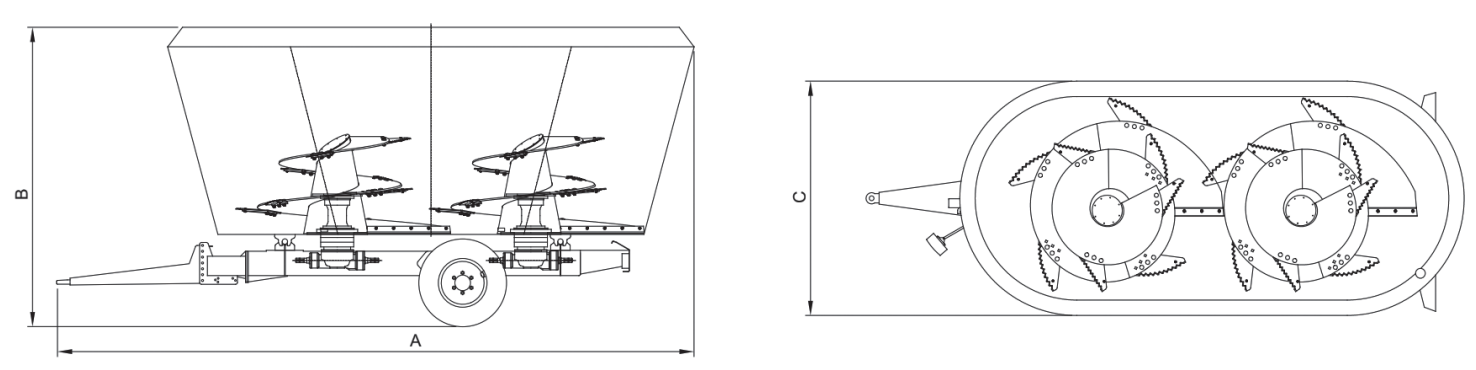

    A - Longueur hors tout (m)*4.324.4
    B - Hauteur hors tout (m)2.953.05
    C - Largeur hors tout (m)2.452.45
    Volume de cuve (m3)1214
    Nombre de vis11
    Nombre de couteaux77
    Nombre de pesons33
    Nombre d'essieux1×901x90
    Transmission68
    Largeur aux roues (m)1.9651.965
    Pneumatiques11.5/80x15.3
    Poids à vide (kg)44504500
    *si tapis longueur hors tout +0.9 m

    Distribution

    • Conical vertical mixing screw equipped with 7 knives, including 5 with adjustable attack angles and one adjustable scraper.
    • Speed ​​540 rpm = 22 rpm for the screw – speed ​​1000 rpm = 40 rpm for the screw.
    • Conical hoop with integrated overflow ring in the tank
    • Fiber hoops.
    • Epicyclic angle drive reducer with fully submerged oil bath, without greaser, with a 4l reservoir.
    • 2 manual vertical counter-knives.
    • Tangential discharge hatch, front right or rear left.
    • Left front control ladder (or rear center if front conveyor belt)
    • Screw intersections
    • Carbide-treated knives with anti-breakage support.
    • Tank, rolled, smooth, in 2 parts to limit the number of welds and increase its robustness.



    Design – Safety

    • Tubular frame.
    • DG500 weighing system, 4 Ø 54 sensors on independent frame, 48 programs, 18 components with horn.
    • Protection covers.



    Circulation

    • Parking brake and hydraulic brake
    • Lighting compliant with road regulations.
    • Manual stand.
    • Hitch on pin.
    • Rotating beacon.
    • CE standard equipment and approved.



    Transmission

    • Cardan transmission with protection and machine side protection bowl.
    • Tractor equipment
    • 1 540 rpm and 1000 rpm power take-off.
    • 1 12v/3-pin electrical outlet for weighing.
    • 1 12v/7-pin electrical outlet for lighting.
    • 1 DE hydraulic distributor for the hatch (be careful with the number if additional equipment).
    • 1 hitch pin.

    DISTRIBUTION

    • Cone for loading concentrates (at the rear).
    • Raised tank for 1 screw (increases height by 0.30 m +2 m3).
    • Raised tank for 2 screws (increases height by 0.30 m +3 m3).
    • Hydraulic offset of the conveyor belt 0.30 m to the right or left or offset 0.20 m to the right and left (1 DE).
    • Front bilateral conveyor belt pack chains and bars width 0.80 m (right or left distribution, 2-speed gearbox, control platform) (1 DE) – eliminates side hatch and ladder.
    • Front banana conveyor belt pack chains and bars width 0.80 m (D and G distribution, hydraulic offset 0.20 m maximum height 1 m, 2-speed gearbox, control platform) (1 DE) eliminates side hatch and ladder.
    • Platform replacing ladder.
    • Inclined conveyor belt width 0.80 m for trough 0.60 m to 1.10 m with hydraulic offset on inclined side of 0.30 m. Right or left inclination to be specified (1 DE).
    • Stainless steel conveyor belt width 0.80 m.
    • PVC lateral conveyor belt on the right length 0.80 m, width 1.10 m, hydraulic inclination (2 DE).
    • Flat bilateral PVC conveyor belt width 0.80 m replacing chains and bars.
    • Central rear unloading conveyor belt length 2.00 m, width 1.10 m, hydraulic lifting by 2 cylinders distribution H. 2.50 m.
    • Bilateral rear unloading conveyor belt width 0.80 m – eliminates front hatch (2 DE).
    • Rear banana conveyor belt chains and bars width 0.80 m (D and G distribution, hydraulic offset 0.20 m maximum height 1 m) (1 DE) – eliminates front hatch.
    • 2nd rear hatch G or other location (1 DE).

    HYDRAULIC

    • Hydraulic stand with hand pump.
    • 2-speed gearbox.
    • MOTEC camera with screen.
    • Additional MOTEC camera.
    • Gear change by teleflexible screw gearbox.
    • Hydraulic gear change tractor distributor screw gearbox (1 DE).
    • Electric gear change (1 additional function) Screw gearbox.
    • Electric distributor 2 functions.
    • Dual electric control next to the conveyor belt (3 functions) unloading (1 direction).
    • Manual regulator for unloading conveyor belt flow (1 direction).
    • Hydraulic selector 2 or 3 functions electric control for machine without conveyor belt (1 DE tractor).
    • Hydraulic valve on side hatch.

    CUTTING

    • 1 additional manual vertical counter-knife.
    • 2 hydraulic vertical counter-knives replacing the 2 manual ones (1DE).
    • 1 additional manual horizontal counter-knife.
    • 1 additional hydraulic horizontal counter-knife (1 DE).
    • 2 hydraulic counter-knives for tubers and roots (1 DE).
    • Knife extension for long straw.
    • 2nd scraper for single screw.

    SECURITY

    • Ferrite lower magnet for unloading by side hatch – Attention to distribution height.
    • Ferrite lower magnet for unloading by conveyor belt – Attention to distribution height.
    • Neodymium Iron lower magnet for unloading by side hatch – Attention to distribution height.
    • Neodymium Iron lower magnet for unloading by conveyor belt – Attention to distribution height.
    • Neodymium magnet under the coil 1 screw composed of 3 bars Ø33 mm L 300 mm.
    • Rotating magnet.
    • Upper magnet for belt model only.

    WEIGHING

    • Farm Chef application for smartphone allows remote modification of weighing unit program.
    • Battery with cord.
    • Hydraulic locking of 4 weighing sensors (for long trips) weighing with screen and antenna – range 100 m.
    • Battery charger for remote control unit.
    • Remote control of the 12 m maximum electric distributor.
    • Weighing deduction but with predisposition.
    • Weighing repeater at the rear or other location.
    • Weighing data transfer to PC – DATA transfer.
    • Light indicator in place of horn.

    TIRES

    • Fixed 4-wheel bogie 445/50 R 19.5 Mounting up to 24 m3 increases height by 100 mm.
    • 4-wheel trailing bogie with hydraulic lock 445/50×19.5.
    • Spare wheel 445/50 R 19.5.
    • 2 wheels 400/60 x 15.5 replacing 11.5/75 x 15.3.
    • 2 wheels 400/45 x 17.5 lowers height by 40 mm compared to 445/50 R 19.5.
    • 4 wheels (solid) twin 8.15 x 15 (200 x 710) lowers height by 150 mm compared to 445/50 R 19.5 Incompatible with PVC side conveyor belt on single screw.
    • 4 wheels (solid) twin 215/75 R 17.5 (219 x 779) lowers height by 70 mm compared to 445 x 19.5.

    TRANSMISSION

    • Standard series 8 cardan with protection.
    • 1/2 large angle cardan on tractor side with series 8 protection.

    MISCELLANEOUS

    • Electrically controlled hydraulic stand.
    • Side with 10 mm thickness – machine 1 screw/2 screws/3 screws.
    • 4 mm stainless steel liner 1 screw/2 screws/3 screws belted side tank height 0.60 cm.
    • Additional electric function on electric distributor.
    • Rear mudguard bogie.
    • Conveyor belt restrictor for sheepfold.
    • Hydraulic distribution roller on side hatch.
    • Sabot replacing stand.
    • Supplement for 1st coil in 20 mm on 15 mm screw – per unit.
    • Supplement for 1st coil in 25 mm on 15 mm screw – per unit.
    • Supplement for 1st coil in 25 mm on 20 mm screw – per unit.
    • 20 mm bottom supplement.
    • Supplement for double-adjustment vertical counter-knives lower part.
    • Water incorporating hose.
    • 20 mm thickness screw (the screw).
    • Hardox screw.
    • Hydraulic valve on front or rear side hatch.
